IMPORTANT DETAILSHOMEOWNERS

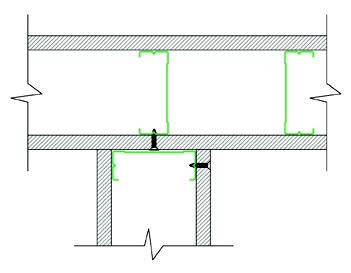

INTERSECTION Intersection

  • Install track on the floor and
    ceiling. Leave 1/2” or 5/8” gap
    for drywall to run through.
  • Place the intersecting stud
    centered with adjoining stud
    and secure with a drywall
    screw (as shown).

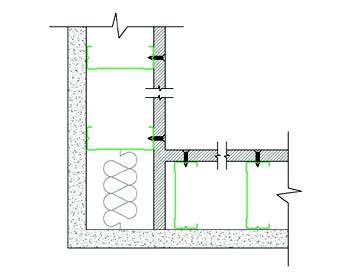

INSIDE CORNERInside Corner

  • Install tracks on the floors
    and ceilings 90° to each other
    leaving 1/2” or 5/8” gap for
    drywall to run through.
  • Form right angle with studs to
    create inside corner.

OUTSIDE CORNER

Outside Corner

  • Install tracks on the floors and
    ceilings perpendicular to each other.
  • Three studs are required to
    complete an outside corner.
  • Place one stud at outside edge
    of track intersection and two on
    either side of inside intersection.

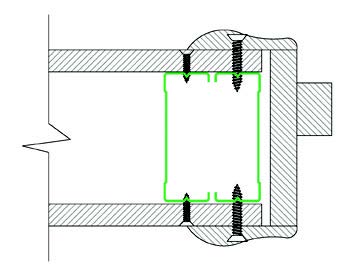

DOOR FRAME ADoor Frame A

  • Install double steel studs at the
    door frame.
  • Ensure studs are facing each
    other as shown above.
  • Secure each stud using drywall
    screws.

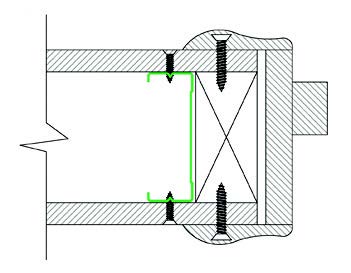

DOOR FRAME BDoor Frame B

  • Install frame using one wood and
    one steel stud as shown.
  • Butt steel stud against wood stud
    and fasten both to drywall.

TRIM

Trim ATrim B



  • Fasten trim to base of wall with
    trimhead screws.
  • Construction adhesive can also be
    applied to the back of trim prior
    to fastening
