Bailey Metal Drywall Trims
Our metal trims are made of sturdy zinc-coated steel, for excellent protection to external corners. Our trims provide superior compound adhesion and can be applied either with nails or screws. Custom-made profiles and shapes are available to meet your specifications.
D-100-90° Drywall Corner Bead
This Drywall Corner Bead, manufactured using sturdy zinc-coated steel, provides excellent protection to external corners. The holes and knurled surface provide an excellent 'key' for the joint compound. This corner bead can be applied either with nails, screws or clinch-on tools.
D-100-130° Drywall Corner Bead
This drywall Corner Bead was specifically designed to provide protection to external 130º wide angle corners. 130º Corner Bead is available from stock with 1 1/4" or 1 1/8" flanges. (This is to fit 135º corners).
D-200 Drywall Metal Trim
For use with 1/2” and 5/8” Wallboard
This Drywall Trim provides a neat finish and solid protection to gypsum wallboard at window and door jambs where wood trim is omitted. Holes in the flange provide a “key” for the joint cement.
D-400 Metal Trim
Provides edge protection at window and door openings, and where wallboard butts against concrete or other materials. Finishing cement is optional. (For use with 3/8", 1/2", or 5/8" wallboard).
4411 Channel Trim
A tapeable steel casing that provides maximum protection at door and window jambs. Quickly installed by nailing through channel and board into the jamb or framing. (For use with 1/2" or 5/8" wallboard).
2” Deep Leg Track
Bailey 2” Deep Leg Track is designed for applications where wall height will vary slightly along its length, due to uneven concrete, etc.
Carpet Base Track
Bailey Carpet Base Track is manufactured with an extra deep leg. This leg can be varied to suit, while stocked in 4 7/8” depth for 2 ½” and 3 5/8” stud. Available in some locations.
The most common application is to provide a backing for the attachment of carpet where it is extended up the wall.
D-300 Drywall Reveal Trim
This Drywall Trim is designed to provide crisp clean reveals around openings or at ceilings and floors. The holes and knurled surface provides an excellent 'key' for finishing with joint compound. For use with 1/2" drywall to provide a 1/2" or 5/8" reveal.
D-800 Drywall Reveal Trim
A solid Reveal Trim for use at doors, windows, ceilings, etc. The surface is ready for painting and additional finishing is not required. Available for 1/2" or 5/8" drywall. D-800 provided with a 1/2" reveal as a standard. Custom reveals are also readily available. (Please inquire for availability by region).

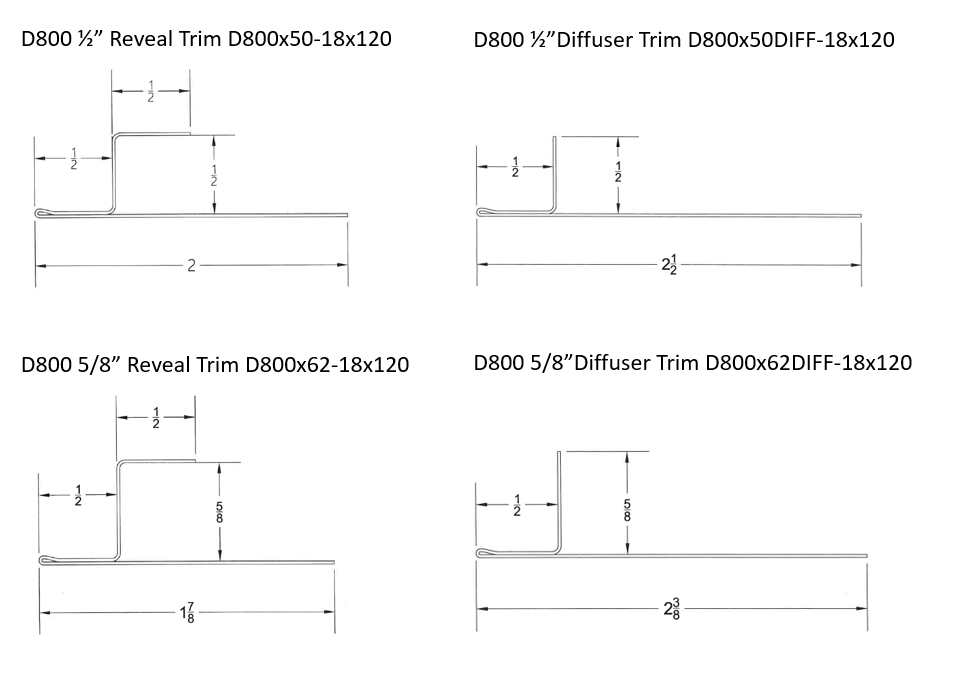

D800 Drywall Reveal and Diffuser Trims
D-500 Angle Trim
This 1 1/4" x 1/2" Angle Trim finishes and protects drywall edges. Easily applied using standard drywall adhesive after the board is in place.
D-700 Angle Framing Trim
A very versatile 1" x 2" angle or L-Track, for use in column framing, bulkheads, etc.
130° Angle Trims
Available from stock with 2" x 2" or 1 1/2" x 1 1/2" flanges. Designed for 130º external corner construction. Flange size and angle can be varied to meet design criteria. (This is to fit 135º corner).
D-900 Z Trim
A trim designed to hold rigid insulation in place and provide a face to fasten finishing (drywall, siding, etc.). Suitable for interior or exterior applications. Stocked for 1 1/2" and 2" insulation thickness. Available in steel thicknesses up to 68mils (14ga).
Special Profiles
A trim designed to hold rigid insulation in place and provide a face to fasten finishing (drywall, siding, etc.). Suitable for interior or exterior applications. Stocked for 1 1/2" and 2" insulation thickness. Available in steel thicknesses up to 68mils (14ga).
