3.4 Diamond V Groove Mesh Lath
A Galvanized Expanded Steel Plaster/Stucco Base
ClarkDietrich 3.4 Diamond V Groove Mesh Lath is distributed in Canada by Bailey Metal Products Limited.

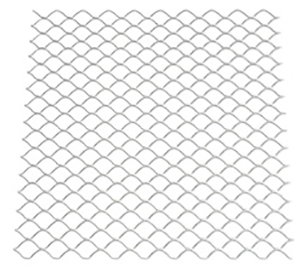

A superior multi-purpose expanded steel base widely used for interior and exterior plaster and stucco reinforcement. The flat surface is easily cut and formed for use with flat or contoured surfaces. It is an excellent base for stone, spray on structural fireproofing, ornamental work, and under ceramic tile. Expanded metal lath is formed from sheet steel that has been slit and expanded to form thousands of plaster “keys” per square yard. Its time proven exceptional strength and flexibility makes it the preferred metal base requested by contractors and design professionals.

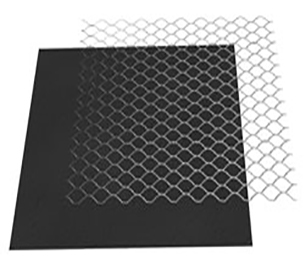

Diamond mesh metal lath is available with or without a Grade-D asphalt paper-backing breather sheet.
Product Data & Ordering Information
Packaged: 10 pieces per bundle, 50 bundles per skid
Sheet Sizes: 27" x 96" although 27" x 97" is available in some regions.
Material: G-60 Galvanized Steel
ASTM & Code Standards:
Material: ASTM C847, CE 240.01 and EMLA-920
All ClarkDietrich Expanded Metal Lath is fabricated from prime galvanized steel,
G60 zinc coating by the hot dipped method, conforming to Specification
ATI CCRR-0204 - Metal Lath - Code Compliance Research Report
Installation: C1063 (exterior), ASTM C841 (interior), ASTM C-1780 (thin veneer stone)
SDS & Product Certification Information
