EXTENDED FASTCLIP™ (FCEC)THE STRENGTH WITHIN


EXTENDED FASTCLIP™ (FCEC)

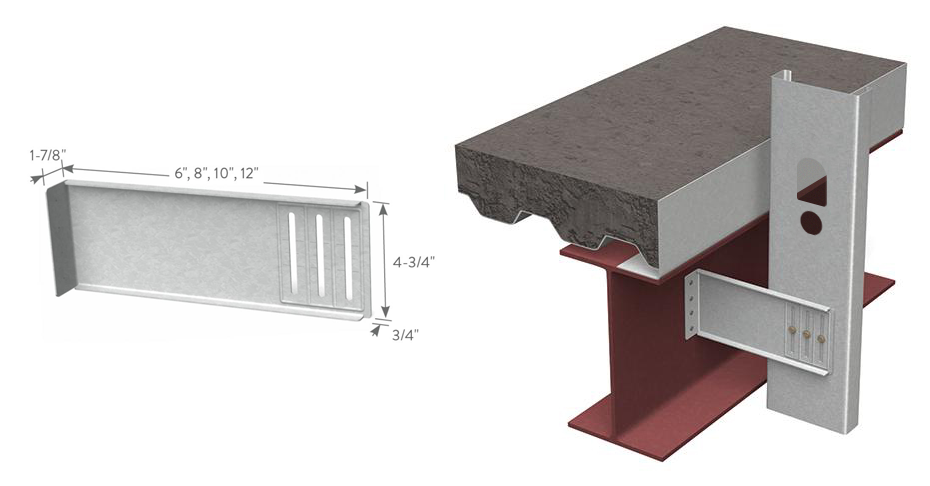

efc combined



PROVIDES VERTICAL BUILDING MOVEMENT UP TO 3” AND IS COMMONLY USED FOR LARGE STANDOFF CONDITIONS

EXTENDED FastClip™ Slide Clip™ (FCEC) 68mils (14ga) deflection clips (8" clip is available in 14ga & 12ga)  are used to attach exterior curtain wall studs to the building structure and provide for vertical building movement independent of the cold-formed steel framing.

The clips are available in standard lengths of 6", 8”, 10” and 12” and are ideal for medium to larger standoff conditions. EXTENDED FastClip™ deflection clips install quickly with screws, welds or powder-actuated fasteners, and provide adjustable standoff to ensure a plumb wall plane. FastClip™ Deflection Screws are provided with each clip to ensure friction-free sliding.

  • Eliminates shims and scabs.
  • Vertical movement up to 3" (1-1/2" up and 1-1/2"down).
  • Specially designed to simplify welding installation
  • Fast, one-piece universal installation. No left or right handed clips
  • FastClip™ Deflection Screws (included) provide frictionless slip connections
  • Custom and longer lengths available
  • U.S. Patent No. 6,688,069

FastClip™ 14GA system meets Intertek CCRR-0208 in compliance with the 2018, 2015 & 2012 International Building Code® (IBC) and International Residential Code® (IRC), as well as the 2017 Florida Building Code and 2016 California Building Code.

Meets SFIA Certification for Manufacturing Compliance Program for Connectors for Cold-Formed Steel Construction.

Alternative  Products
Webslide Clip (WSC 350 & WSC 550)
Fast Strut™
Horizontal Flange Attachment (HFA CLIP)

PRODUCT DATA & ORDERING INFORMATION

Product code   Gauge
 Mils  Design
thickness (in)
Size (in)   Pcs./Bucket
 CLIP-FCECX6  14  68 0.0713
  1-7/8" x 6" x 4-3/4"  25
 CLIP-FCECX8  14  68  0.0713  1-7/8" x 8" x 4-3/4"  25
 CLIP-FCECX8-97  12  97  0.1017  1-7/8" x 8" x 4-3/4"  25
 CLIP-FCECX10  14  68  0.0713  1-7/8" x 10" x 4-3/4"  25
 CLIP-FCECX12  14  68  0.0713  1-7/8" x 12" x 4-3/4"  25
Includes 80 FastClip deflection screws per box Material Structural Grade 50 Type H (ST50H), 50ksi
Coating G90 (Z275) hot-dipped galvanized coating

*EXTENDED FastClip™ (FCEC) are distributed by Bailey Metal Products in Canada under permission granted by ClarkDietrich Building Systems. ClarkDietrich EXTENDED FastClip™ (FCEC) is a trademark of ClarkDietrich.
