SLOTTED TRACKSSTRUCTURAL FRAMING

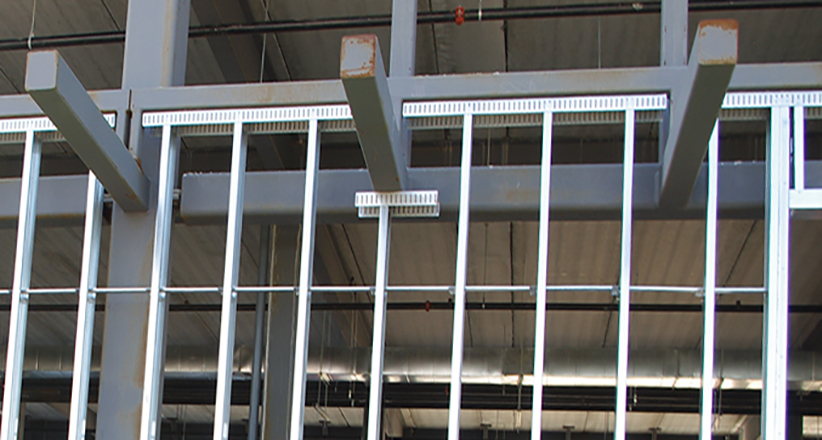

Multi-Slot Track

The Bailey Multi-Slot Track is an economical deflection system designed to provide complete flexibility.  Allows for fast, easy and flexible stud installation.

  • Pre-punched 1½" slots are spaced 1" o.c. to accommodate any stud spacing
  • 2½" leg height for added strength and improved performance
  • Reduces required material
  • Reduces labour costs
  • Can be used with Bailey TDC Clips to increase the load capacity of the track

Bailey Multi-Slot track is available stocked in 2½", 3 5/8", 4", 6" and 8" sizes in 25ga (18mils), 20ga (33mils), 18ga (48mils), 16ga (54mils), and 14ga (68mils).  All Bailey Deflection Connectors have been rigorously tested and are engineered and designed to meet or exceed all building code requirements.  In addition to the most commonly used items, Bailey Metal Products Limited manufactures other products to meet even the most unique applications.

Please contact any Bailey office for assistance with your own specific design needs
