TOP DEFLECTION CLIP (TDC 350 & TDC 587)FRAMING CONNECTORS & CLIPS

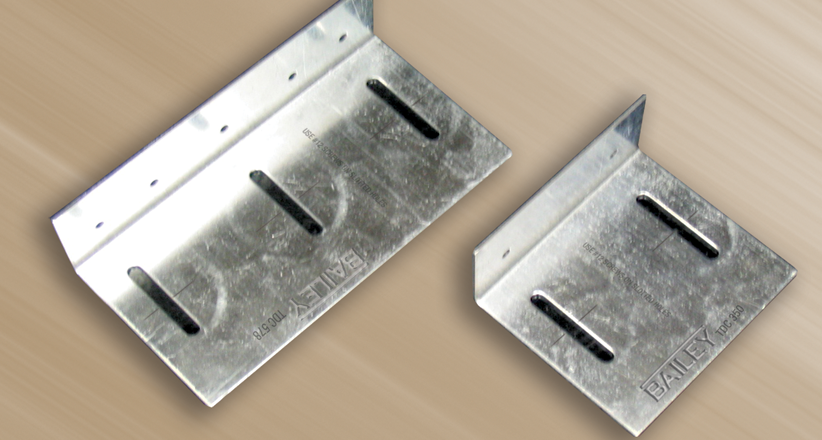

Top Deflection Clip (TDC 350 & TDC 587)

Used on exterior curtain wall studs to allow for building structure deflection at the top of the wall. Bailey Top Deflection Clips can also be used for non-load bearing interior wall requirements. Deflection Clips can also be used for non-load bearing interior wall requirements. Allows for up to 1.5" deflection (0.75" in each direction).

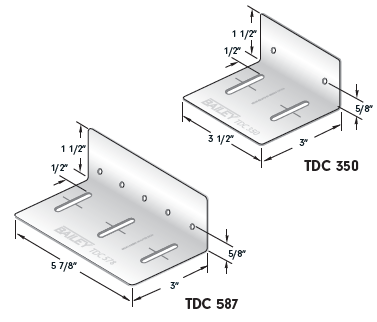

Available in two sizes with two slots to accommodate 3 5/8" and 4" studs or three slots to accommodate 6" and 8" studs.

Designed with pre-punched holes to ensure correct fastening locations.

Can be used with Bailey Slotted Track where required.

The Bailey TDC 350 or TDC 587 Deflection Clip can be attached to the structure using power actuated fasteners (PAF), screws, concrete anchors or by welding, depending on the base material of the structure and as specified by the engineer of record and outlined on the engineered shop drawings.
